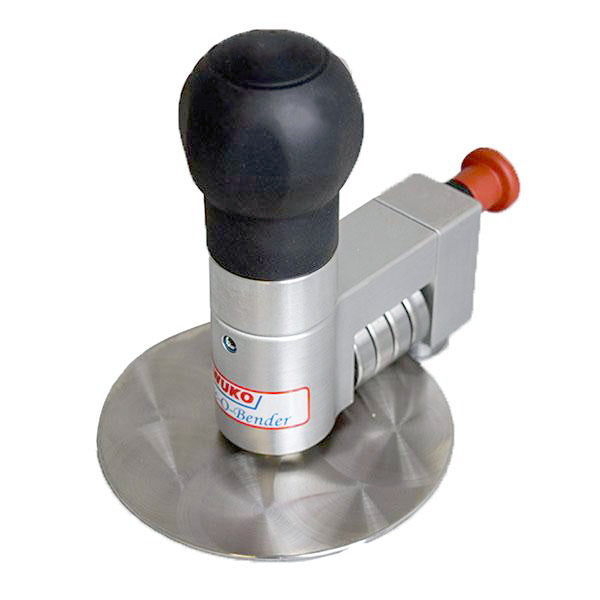

Wuko Disc-O-Bender Maxi Twist 4041

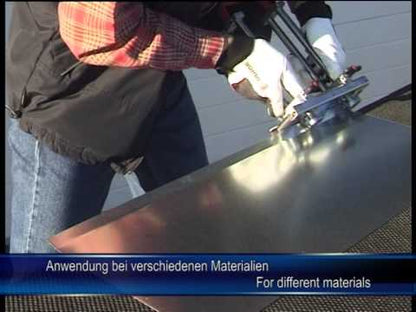

For bending sheet metal from 90 to 180 ° (hems, squash folds etc.) on long straight sheetmetal pieces. The 4041 can be placed on and removed off the work piece at any point.

This is the same as the WUKO 4040 except offers a max. bending height of 40mm instead of 32mm.

Use with WUKO 2204 or 6200 to create a full hem.

- Step One - Fold 0° - 90° with 2204 or 6200

- Step Two - Fold 90° - 180° with 4041

Technical data:

• required pre-bending (min. 90 °): 8 - 40mm
• maximum plate thickness: 0.80 mm (limited, depending on material)

Example full hem profile
