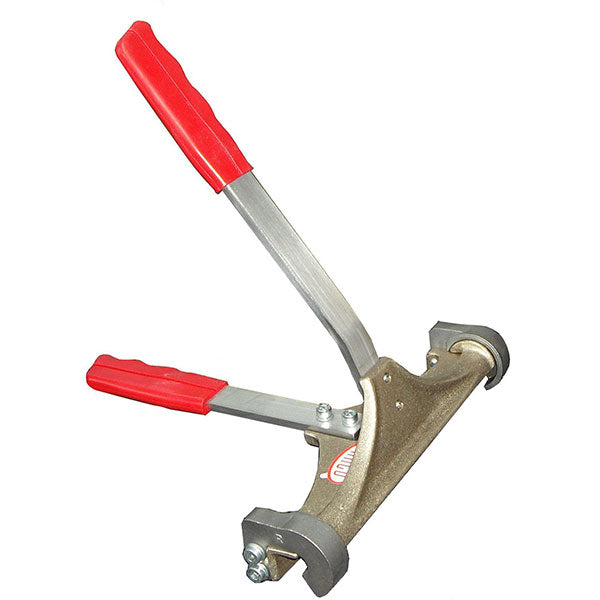

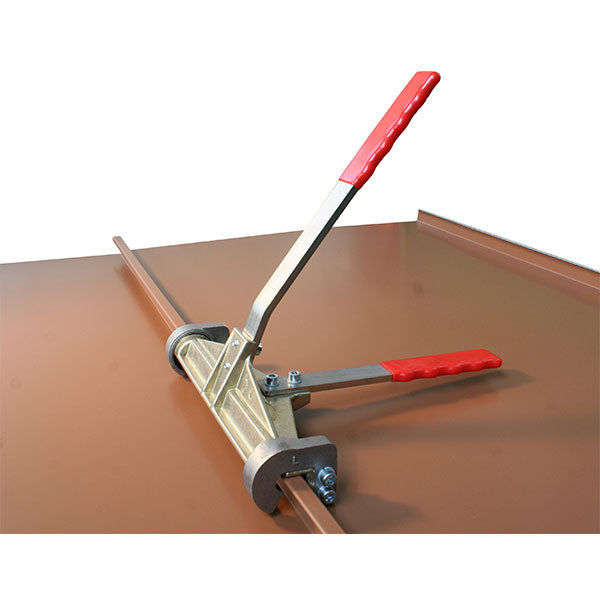

Draco K8 - Single Lock Hand Seamer

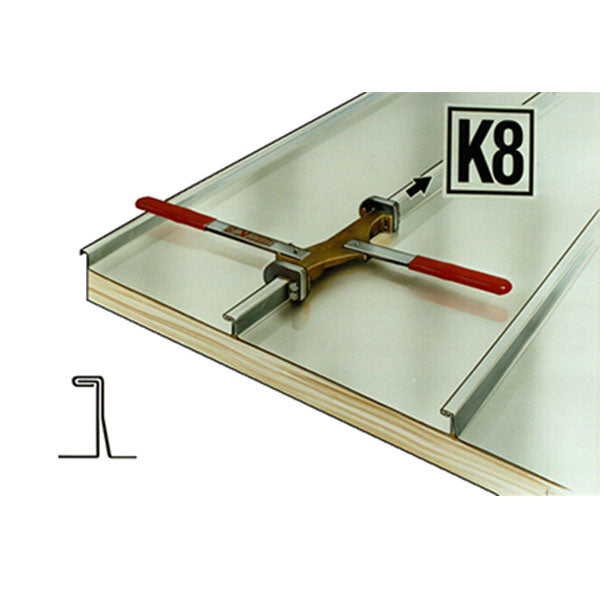

The Single Lock Hand Seamer K8 is ideal for closing single seams in a single pass in profiled material. Moreover, it is ideal for start-up connections and areas with difficult access, so wherever one can not get in with the electric tilting machines and still want to work quickly. The K 8 closes the profile to a strong and fixed single seam in sheet with or without coating.
Sheet iron, aluminum, copper and zinc can be threaded to a thickness of 0.8 mm. In stainless steel the maximum thickness is 0.5 mm.
- no damage to coated or painted material
- easy to use
- minimal force required
- all parts are made of rust-free materials
- ideal for canopy roofs and many other applications
Application options:
- The K8 is suitable for short facades, chimney connections, front roofs, bay windows, etc., such as fixing initial connections, pre-closing on clips and closing hard-to-reach areas on facades.
- When placing very long lanes, the K 8 can also be used for fastening and thus for temporary protection against gusts of wind.
- If an electric seamer (eg the DRÄCO roofing machine K 9-1) can not be used directly at the beginning of a seam due to obstacles, or if the seamer at the end of the seam can not run out of the material, the K 8 closes before or after.
Technical Data
Model | K 8 | ||
Item. No. | 91520 | ||
weight - kg | 2.3 | ||
stainless steel -mm | 0.5 | ||
length - mm | 255 | ||
width - mm | 270-570 | ||
closing length - mm | 210 | ||
aluminum, copper, zinc, steel - mm | 0.8 | ||
Steel, Plastisol - mm | 0.8 |
