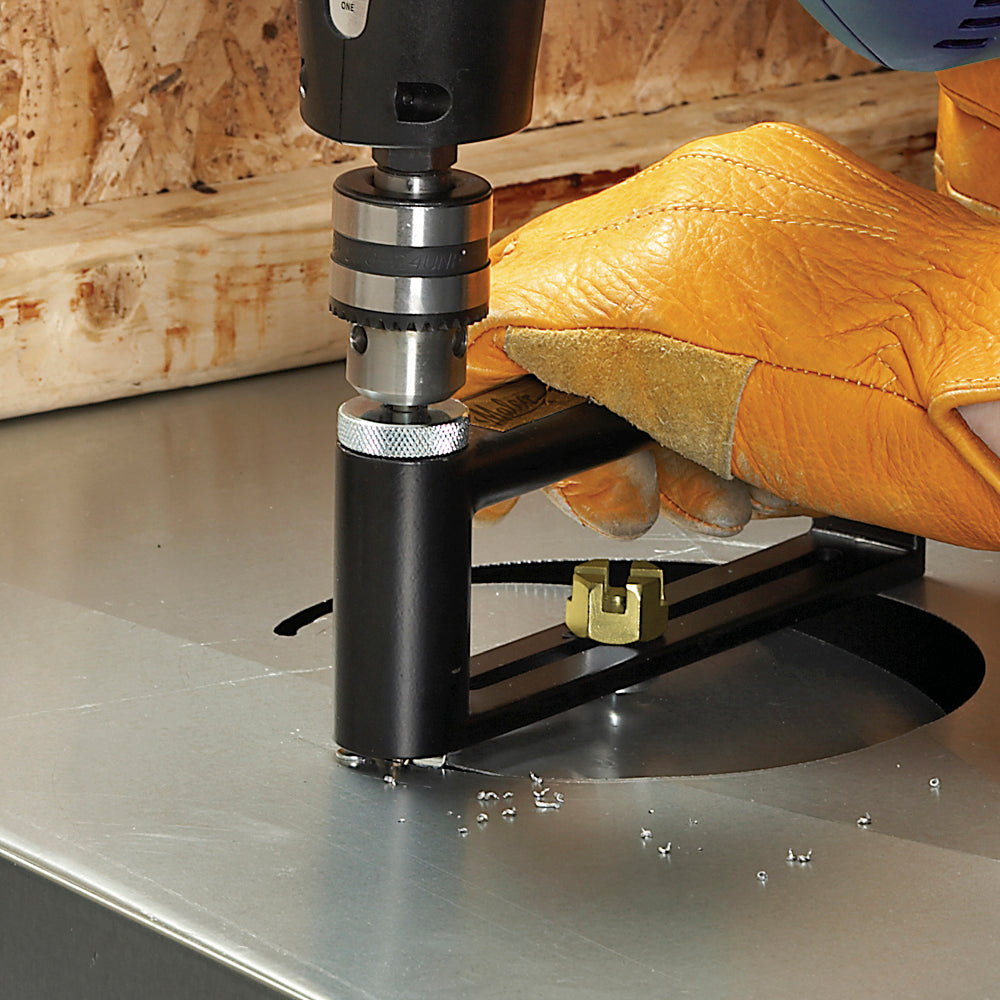

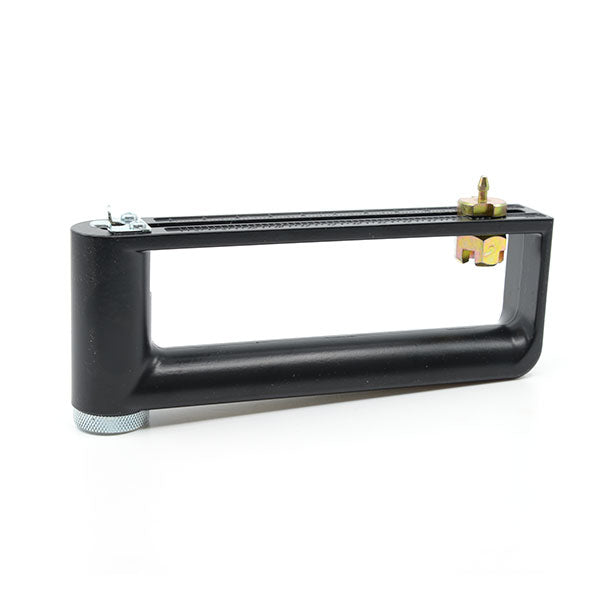

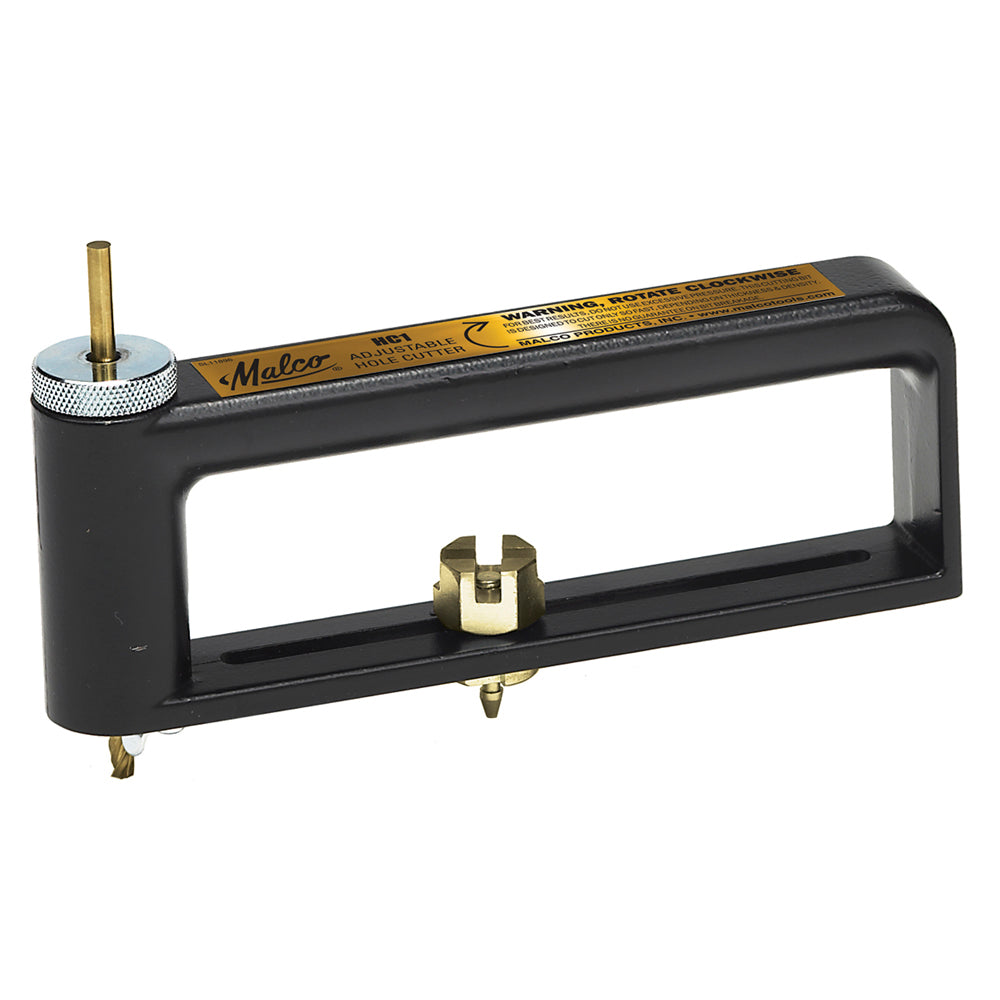

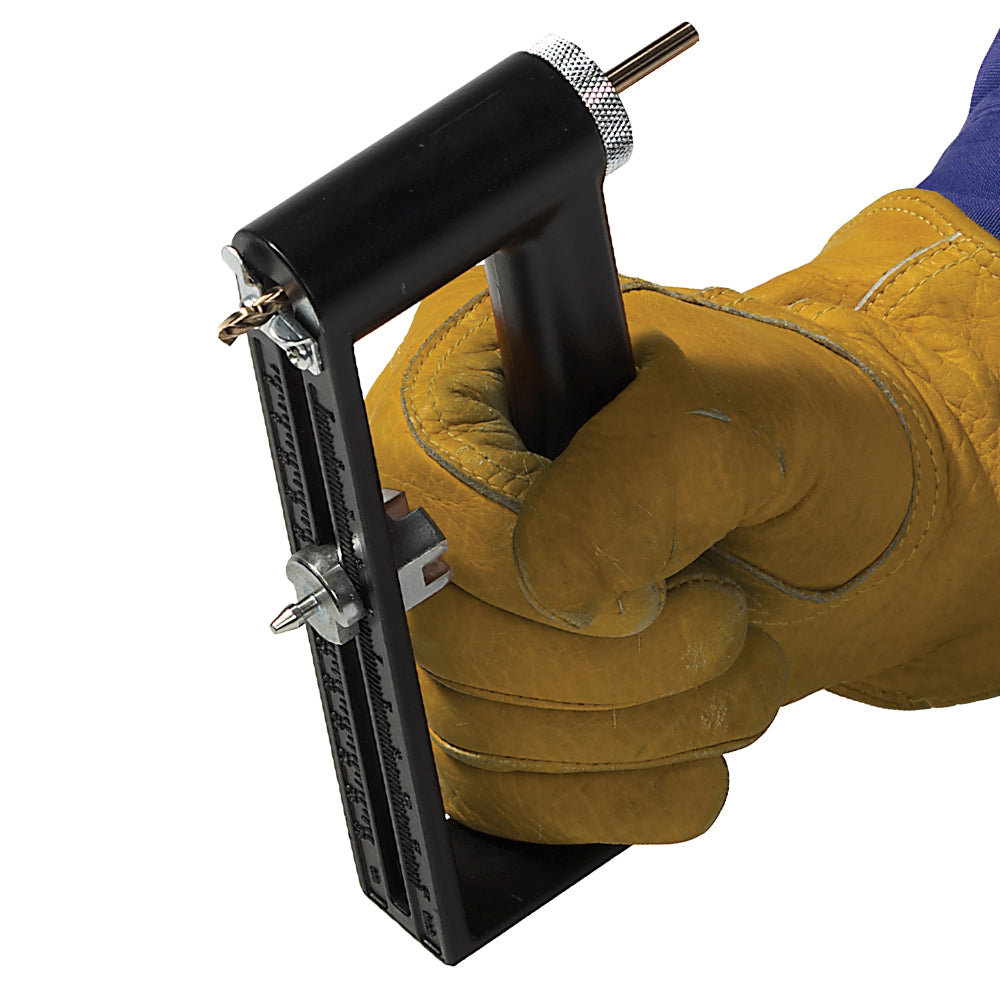

Malco’s sheet metal hole cutter quickly installs into the chuck of any corded or cordless drill as small as 1/4″ (6.35 mm). The Distinctive Gold Bits, Bearings, and Pivot Pin signify the longest lasting, fastest cutting, and easiest adjusting solution for cutting holes in sheet metal. A Lightweight aluminium frame makes these accessories extremely portable for a variety of hole cutting applications in sheet metal, which includes 20-gauge (1.02 mm) galvanised steel. A compact model HC1 Hole Cutter is adjustable for making 2 to 12″ (51 to 305 mm) diameter holes. The larger HC2 model cuts 2 to 20″ (51 to 508 mm) holes. A combination English/Metric diameter gauge is included on the adjustable pivot slide for both models and both models use the same mill-type Cutter Bit and replacement parts.
Both the HC1 and HC2 sheet metal hole cutter feature Malco’s “Gold Standard” Cutter Bits. These cutter bits feature a long lasting, mill type cutting edge and large flat for adjusting the cutting edge location up or down to extend bit life. The CB cutter bit fits either model and is easily replaceable. These bits are available in 1 pack (#CB), 6 pack (#CBB), as well as a bulk pack of 100 (#CB100).
- Versatile for a variety of metal work.
- Longest lasting cutter bit.
- Precision-fit sealed bearings.
- Easy-adjusting pivot pin.
NOTE: Cutting bit wears only in the dimension of the thickness of material cut. Adjusting bit up or down slightly will expose a new cutting edge and thus increase life of bit.
|Product Code||Description||Hole Dia. (mm)||Capacity||Net Weight (g)|
|HC1||Sheet Metal Hole Cutter||51 - 305
