Malco

Malco Portable Mini Brake

Malco Portable Mini Brake

Regular price $1,094.50 AUD
Regular price Sale price $1,094.50 AUD
Sale Request Availability
Tax included.

Contact us for more information.

(03) 9758 9377

webshop@sheetmetalmachinery.com.au

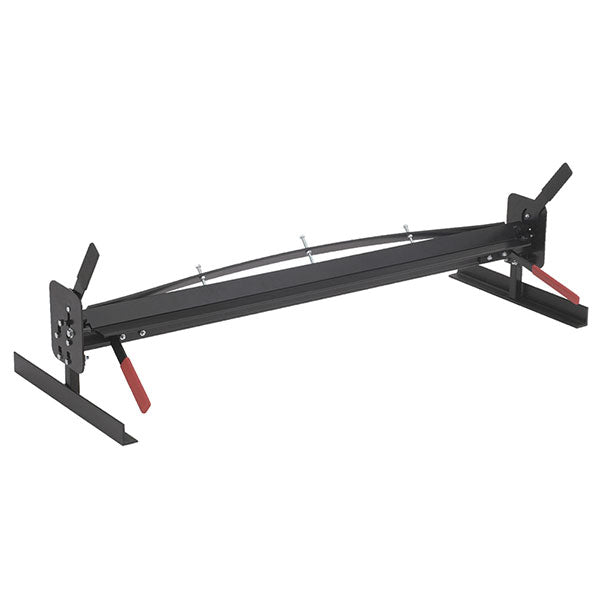

Portable mini brake for on site or in-factory fabrication.

Perfect for fabricating boxes or flashing/fascia corners either in the factory or on-site.

Can be comfortably carried by two people and operates on a workbench or the tailgate of your work vehicle.

Example profile:

Technical Data:

  • Bend Angle - 135°
  • Max. Bend Width - 1.2m
  • Min. Bend Width - 50.8mm
  • Min. Flange, Max Pan Height - 76.2mm





Make big or small fabrications on the job with this lightweight and portable tool! The versatile Mini-Brake produces bends up to 135 degrees in sheet metals, including aluminium, copper, and 22-gauge galvanised steel. The brake’s compact size can accommodate sheet metal stock up to 4-feet wide, in any length, because there is no fixed throat depth to contend with.

Use the Mini Brake anywhere on the job site, even on a truck tailgate, for a variety of fabricating tasks from large HVAC transitions to narrow roof flashing to structures as small as a 4-inch square. Strengthening ribs on the brake’s anvil and apron ensure consistent bends. A safety-conscious, cam-over style clamping mechanism, similar to much larger shop-floor brakes, keeps the anvil secure in any position. Optional legs are available separately.

Technical Data

Product Code Description O/A Width m Min Hem Bending Depth mm Net Weight kg
MB48A Portable Mini-Brake 1.22
12.7
32.66
